# 装饰器模式：动态扩展功能的艺术

# 一、业务痛点与技术背景

核心价值：解决日志系统中动态添加日志格式、缓存系统中灵活组合缓存策略等实际问题，掌握装饰器模式在中间件开发中的最佳实践，避免继承爆炸和功能耦合问题。

在我们开发的分布式缓存系统中，最初只有基础的缓存功能。随着业务发展，需要添加统计监控、数据压缩、加密、限流等多种增强功能。如果使用继承方式，将会产生 2^n 个组合类（n 个功能点），维护成本呈指数级增长。

更严重的是，在一次系统升级中，由于继承层次过深，一个看似无害的修改导致了连锁反应，使得缓存系统的性能下降了 40%，直接影响了整个交易链路的响应时间。这次事故让我们深刻认识到：静态继承无法满足功能的动态组合需求。

# 二、装饰器模式的核心原理

# 2.1 本质类比：俄罗斯套娃

装饰器模式的本质就像俄罗斯套娃：

最内层的娃娃：被装饰的原始对象（Component）
外层的每个娃娃：装饰器（Decorator），为内层添加新功能
整体外观：保持了娃娃的形状（接口一致性）

关键在于：每个娃娃都可以独立存在，也可以任意组合，这种层层包裹的方式实现了功能的动态叠加。

# 2.2 核心设计逻辑

// 组件接口 - 定义核心功能
public interface CacheService {
    /**
     * 获取缓存值
     * @param key 缓存键
     * @return 缓存值
     */
    Object get(String key);

    /**
     * 设置缓存值
     * @param key 缓存键
     * @param value 缓存值
     * @param expireTime 过期时间
     */
    void put(String key, Object value, long expireTime);

    /**
     * 删除缓存
     * @param key 缓存键
     */
    void delete(String key);

    /**
     * 获取组件名称
     */
    String getComponentName();
}

// 具体组件 - 基础缓存实现
@Component
public class RedisCacheService implements CacheService {

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    @Override
    public Object get(String key) {
        try {
            return redisTemplate.opsForValue().get(key);
        } catch (Exception e) {
            log.error("Redis获取缓存失败: key={}", key, e);
            return null;
        }
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        try {
            redisTemplate.opsForValue().set(key, value, expireTime, TimeUnit.SECONDS);
        } catch (Exception e) {
            log.error("Redis设置缓存失败: key={}", key, e);
        }
    }

    @Override
    public void delete(String key) {
        try {
            redisTemplate.delete(key);
        } catch (Exception e) {
            log.error("Redis删除缓存失败: key={}", key, e);
        }
    }

    @Override
    public String getComponentName() {
        return "RedisCache";
    }
}

// 抽象装饰器 - 实现组件接口，持有组件引用
public abstract class CacheDecorator implements CacheService {
    protected final CacheService cacheService;

    public CacheDecorator(CacheService cacheService) {
        this.cacheService = cacheService;
    }

    @Override
    public Object get(String key) {
        return cacheService.get(key);
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        cacheService.put(key, value, expireTime);
    }

    @Override
    public void delete(String key) {
        cacheService.delete(key);
    }

    @Override
    public String getComponentName() {
        return cacheService.getComponentName();
    }
}

// 具体装饰器 - 统计功能
@Component
public class StatisticsDecorator extends CacheDecorator {

    private final MeterRegistry meterRegistry;
    private final Timer.Sample sample;

    public StatisticsDecorator(CacheService cacheService, MeterRegistry meterRegistry) {
        super(cacheService);
        this.meterRegistry = meterRegistry;
        this.sample = Timer.start(meterRegistry);
    }

    @Override
    public Object get(String key) {
        Timer.Sample sample = Timer.start(meterRegistry);
        try {
            Object result = super.get(key);

            // 统计命中率
            if (result != null) {
                meterRegistry.counter("cache.hit", "component", getComponentName()).increment();
            } else {
                meterRegistry.counter("cache.miss", "component", getComponentName()).increment();
            }

            return result;
        } finally {
            sample.stop(Timer.builder("cache.get")
                .tag("component", getComponentName())
                .register(meterRegistry));
        }
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        Timer.Sample sample = Timer.start(meterRegistry);
        try {
            super.put(key, value, expireTime);
            meterRegistry.counter("cache.put", "component", getComponentName()).increment();
        } finally {
            sample.stop(Timer.builder("cache.put")
                .tag("component", getComponentName())
                .register(meterRegistry));
        }
    }

    @Override
    public String getComponentName() {
        return "Statistics-" + super.getComponentName();
    }
}

// 具体装饰器 - 压缩功能
@Component
public class CompressionDecorator extends CacheDecorator {

    private final CompressionStrategy compressionStrategy;

    public CompressionDecorator(CacheService cacheService, CompressionStrategy compressionStrategy) {
        super(cacheService);
        this.compressionStrategy = compressionStrategy;
    }

    @Override
    public Object get(String key) {
        Object compressedValue = super.get(key);
        if (compressedValue instanceof byte[]) {
            try {
                return compressionStrategy.decompress((byte[]) compressedValue);
            } catch (IOException e) {
                log.error("解压缩失败: key={}", key, e);
                return null;
            }
        }
        return compressedValue;
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        if (value instanceof Serializable) {
            try {
                byte[] compressedData = compressionStrategy.compress(value);
                super.put(key, compressedData, expireTime);
            } catch (IOException e) {
                log.error("压缩失败: key={}", key, e);
                // 降级处理：存储原始数据
                super.put(key, value, expireTime);
            }
        } else {
            super.put(key, value, expireTime);
        }
    }

    @Override
    public String getComponentName() {
        return "Compression-" + super.getComponentName();
    }
}

工程师洞察：装饰器模式的精妙之处在于透明性 —— 装饰器与被装饰对象实现相同的接口，客户端代码无需区分。这种设计使得功能的组合变得像搭积木一样简单。

# 三、实践方案：缓存系统功能增强

# 3.1 场景约束与设计思路

适用场景：

需要动态组合多种功能
功能之间相对独立，没有强依赖关系
需要在运行时决定功能组合
避免继承层次的爆炸式增长

不适用场景：

功能之间有复杂的依赖关系
需要频繁修改组件接口
性能要求极高的场景（装饰器有调用开销）

# 3.2 具体实现步骤

第一步：装饰器工厂

@Component
public class CacheDecoratorFactory {

    private final ApplicationContext applicationContext;

    public CacheDecoratorFactory(ApplicationContext applicationContext) {
        this.applicationContext = applicationContext;
    }

    public CacheService createCacheService(String... decoratorNames) {
        // 创建基础缓存服务
        CacheService cacheService = applicationContext.getBean(RedisCacheService.class);

        // 按顺序应用装饰器
        for (String decoratorName : decoratorNames) {
            cacheService = createDecorator(cacheService, decoratorName);
        }

        return cacheService;
    }

    private CacheService createDecorator(CacheService cacheService, String decoratorName) {
        switch (decoratorName.toLowerCase()) {
            case "statistics":
                return new StatisticsDecorator(cacheService, applicationContext.getBean(MeterRegistry.class));
            case "compression":
                return new CompressionDecorator(cacheService, applicationContext.getBean(CompressionStrategy.class));
            case "encryption":
                return new EncryptionDecorator(cacheService, applicationContext.getBean(EncryptionService.class));
            case "ratelimit":
                return new RateLimitDecorator(cacheService, applicationContext.getBean(RateLimiter.class));
            default:
                throw new IllegalArgumentException("未知的装饰器: " + decoratorName);
        }
    }
}

第二步：配置驱动的装饰器组合

@ConfigurationProperties(prefix = "cache.decorators")
@Data
public class CacheDecoratorConfig {
    private List<String> enabled = new ArrayList<>();
    private Map<String, Map<String, Object>> properties = new HashMap<>();
}

@Service
public class ConfigurableCacheService {

    private final CacheDecoratorFactory decoratorFactory;
    private final CacheDecoratorConfig config;
    private volatile CacheService cacheService;

    public ConfigurableCacheService(CacheDecoratorFactory decoratorFactory,
                                   CacheDecoratorConfig config) {
        this.decoratorFactory = decoratorFactory;
        this.config = config;
        this.cacheService = createCacheService();
    }

    private CacheService createCacheService() {
        List<String> decoratorNames = config.getEnabled();
        return decoratorFactory.createCacheService(decoratorNames.toArray(new String[0]));
    }

    // 支持运行时重新配置
    @EventListener
    public void onConfigChange(ConfigChangeEvent event) {
        if (event.getKey().startsWith("cache.decorators")) {
            this.cacheService = createCacheService();
            log.info("缓存服务装饰器重新配置: {}", config.getEnabled());
        }
    }

    public Object get(String key) {
        return cacheService.get(key);
    }

    public void put(String key, Object value, long expireTime) {
        cacheService.put(key, value, expireTime);
    }

    public void delete(String key) {
        cacheService.delete(key);
    }
}

第三步：高级装饰器实现

// 加密装饰器
@Component
public class EncryptionDecorator extends CacheDecorator {

    private final EncryptionService encryptionService;

    public EncryptionDecorator(CacheService cacheService, EncryptionService encryptionService) {
        super(cacheService);
        this.encryptionService = encryptionService;
    }

    @Override
    public Object get(String key) {
        Object encryptedValue = super.get(key);
        if (encryptedValue instanceof String) {
            try {
                return encryptionService.decrypt((String) encryptedValue);
            } catch (Exception e) {
                log.error("解密失败: key={}", key, e);
                return null;
            }
        }
        return encryptedValue;
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        try {
            String encryptedValue = encryptionService.encrypt(JSON.toJSONString(value));
            super.put(key, encryptedValue, expireTime);
        } catch (Exception e) {
            log.error("加密失败: key={}", key, e);
            // 降级处理：存储原始数据
            super.put(key, value, expireTime);
        }
    }

    @Override
    public String getComponentName() {
        return "Encryption-" + super.getComponentName();
    }
}

// 限流装饰器
@Component
public class RateLimitDecorator extends CacheDecorator {

    private final RateLimiter rateLimiter;
    private final int maxRequestsPerSecond;

    public RateLimitDecorator(CacheService cacheService, RateLimiter rateLimiter) {
        super(cacheService);
        this.rateLimiter = rateLimiter;
        this.maxRequestsPerSecond = 1000; // 默认限制
    }

    @Override
    public Object get(String key) {
        if (!rateLimiter.tryAcquire()) {
            log.warn("缓存访问被限流: key={}", key);
            throw new RateLimitException("缓存访问频率超限");
        }
        return super.get(key);
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        if (!rateLimiter.tryAcquire()) {
            log.warn("缓存写入被限流: key={}", key);
            throw new RateLimitException("缓存写入频率超限");
        }
        super.put(key, value, expireTime);
    }

    @Override
    public String getComponentName() {
        return "RateLimit-" + super.getComponentName();
    }
}

# 3.3 效果验证

装饰器组合示例：

@RestController
@RequestMapping("/cache")
public class CacheController {

    @Autowired
    private ConfigurableCacheService cacheService;

    @GetMapping("/get/{key}")
    public ResponseEntity<Object> get(@PathVariable String key) {
        Object value = cacheService.get(key);
        return ResponseEntity.ok(value);
    }

    @PostMapping("/put")
    public ResponseEntity<String> put(@RequestParam String key,
                                   @RequestBody Object value,
                                   @RequestParam(defaultValue = "3600") long expireTime) {
        cacheService.put(key, value, expireTime);
        return ResponseEntity.ok("success");
    }
}

配置文件示例：

cache:
  decorators:
    enabled:
      - statistics
      - compression
      - encryption
    properties:
      compression:
        algorithm: gzip
        threshold: 1024
      encryption:
        algorithm: AES
        key-size: 256

性能对比数据：

功能组合	响应时间	内存占用	QPS	开发复杂度
基础缓存	2ms	100MB	50000	低
基础 + 统计	3ms	120MB	45000	中
基础 + 统计 + 压缩	8ms	80MB	35000	中
基础 + 统计 + 压缩 + 加密	15ms	90MB	25000	高
继承方式实现	15ms	110MB	25000	极高

实践案例：在订单系统的缓存改造中，我们使用装饰器模式实现了灵活的功能组合：

开发阶段：只启用基础缓存功能
测试阶段：添加统计装饰器，监控缓存性能
生产环境：启用压缩装饰器，节省内存成本
安全要求：添加加密装饰器，保护敏感数据

整个过程无需修改核心缓存代码，只需要调整配置即可。

# 四、避坑指南：实战中的踩坑与解决方案

# 4.1 坑点一：装饰器顺序敏感

问题描述：装饰器的执行顺序会影响最终结果，但代码中没有明确控制顺序。

// 错误示例：顺序不确定
CacheService cache = decoratorFactory.createCacheService("compression", "encryption");

// 可能的问题：先压缩后加密 vs 先加密后压缩，结果完全不同

根因分析：装饰器是链式调用，顺序决定了功能的执行顺序。

解决方案：明确定义装饰器顺序规范

@Component
public class OrderedCacheDecoratorFactory {

    // 定义装饰器执行顺序
    private static final Map<String, Integer> DECORATOR_ORDER = Map.of(
        "ratelimit", 1,      // 最外层：限流
        "statistics", 2,     // 统计
        "encryption", 3,     // 加密
        "compression", 4     // 最内层：压缩
    );

    public CacheService createCacheService(List<String> decoratorNames) {
        // 按预定义顺序排序
        List<String> sortedDecorators = decoratorNames.stream()
            .filter(DECORATOR_ORDER::containsKey)
            .sorted(Comparator.comparing(DECORATOR_ORDER::get))
            .collect(Collectors.toList());

        CacheService cacheService = getBaseCacheService();

        for (String decoratorName : sortedDecorators) {
            cacheService = createDecorator(cacheService, decoratorName);
        }

        return cacheService;
    }

    // 验证装饰器顺序的合理性
    public void validateDecoratorOrder(List<String> decoratorNames) {
        List<Integer> orders = decoratorNames.stream()
            .filter(DECORATOR_ORDER::containsKey)
            .map(DECORATOR_ORDER::get)
            .sorted()
            .collect(Collectors.toList());

        // 检查是否有不合理的组合
        if (orders.contains(3) && orders.contains(4) && orders.indexOf(3) > orders.indexOf(4)) {
            throw new IllegalArgumentException("加密装饰器必须在压缩装饰器之前");
        }
    }
}

# 4.2 坑点二：装饰器链过长导致性能问题

问题描述：装饰器链过长时，调用栈深度增加，影响性能和调试。

// 性能问题：装饰器链过长
CacheService cache = new RateLimitDecorator(
    new StatisticsDecorator(
        new EncryptionDecorator(
            new CompressionDecorator(
                new ValidationDecorator(
                    new LoggingDecorator(
                        new RedisCacheService()
                    )
                )
            )
        )
    )
);

根因分析：每个装饰器都会增加一层方法调用，过多的装饰器会导致调用栈过深。

解决方案：装饰器合并优化

@Component
public class CombinedCacheDecorator implements CacheService {

    private final CacheService baseService;
    private final List<CacheEnhancer> enhancers;

    public CombinedCacheDecorator(CacheService baseService, List<CacheEnhancer> enhancers) {
        this.baseService = baseService;
        this.enhancers = enhancers;
    }

    @Override
    public Object get(String key) {
        // 前置处理
        for (CacheEnhancer enhancer : enhancers) {
            Object result = enhancer.beforeGet(key);
            if (result != null) {
                return result;
            }
        }

        // 执行核心逻辑
        Object result = baseService.get(key);

        // 后置处理
        for (CacheEnhancer enhancer : enhancers) {
            result = enhancer.afterGet(key, result);
        }

        return result;
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        // 前置处理
        for (CacheEnhancer enhancer : enhancers) {
            if (!enhancer.beforePut(key, value, expireTime)) {
                return; // 被某个增强器拦截
            }
        }

        // 执行核心逻辑
        baseService.put(key, value, expireTime);

        // 后置处理
        for (CacheEnhancer enhancer : enhancers) {
            enhancer.afterPut(key, value, expireTime);
        }
    }
}

// 增强器接口
public interface CacheEnhancer {
    Object beforeGet(String key);
    Object afterGet(String key, Object result);
    boolean beforePut(String key, Object value, long expireTime);
    void afterPut(String key, Object value, long expireTime);
}

# 4.3 坑点三：装饰器中的异常传播

问题描述：装饰器中的异常处理不当，导致整个装饰器链失效。

// 错误示例：异常处理不当
public class StatisticsDecorator extends CacheDecorator {

    @Override
    public Object get(String key) {
        try {
            Object result = super.get(key);
            // 统计逻辑
            recordStatistics(key, result != null);
            return result;
        } catch (Exception e) {
            // 吞掉异常，返回null
            log.error("统计装饰器异常", e);
            return null; // 错误：掩盖了真正的异常
        }
    }
}

根因分析：装饰器不应该吞噬异常，应该让异常正常传播或进行适当的包装。

解决方案：统一的异常处理策略

public abstract class SafeCacheDecorator implements CacheService {

    protected final CacheService cacheService;
    protected final String decoratorName;

    public SafeCacheDecorator(CacheService cacheService, String decoratorName) {
        this.cacheService = cacheService;
        this.decoratorName = decoratorName;
    }

    @Override
    public Object get(String key) {
        try {
            return doGet(key);
        } catch (Exception e) {
            log.error("{}装饰器执行失败: key={}", decoratorName, key, e);
            // 降级处理：直接调用被装饰对象
            return cacheService.get(key);
        }
    }

    protected abstract Object doGet(String key) throws Exception;

    @Override
    public void put(String key, Object value, long expireTime) {
        try {
            doPut(key, value, expireTime);
        } catch (Exception e) {
            log.error("{}装饰器执行失败: key={}", decoratorName, key, e);
            // 降级处理：直接调用被装饰对象
            cacheService.put(key, value, expireTime);
        }
    }

    protected abstract void doPut(String key, Object value, long expireTime) throws Exception;
}

# 五、高级应用：装饰器模式的扩展

# 5.1 动态装饰器

支持运行时动态添加和移除装饰器：

@Component
public class DynamicCacheService implements CacheService {

    private volatile CacheService currentService;
    private final List<CacheDecorator> activeDecorators = new CopyOnWriteArrayList<>();

    public DynamicCacheService(CacheService baseService) {
        this.currentService = baseService;
    }

    public void addDecorator(CacheDecorator decorator) {
        activeDecorators.add(decorator);
        rebuildServiceChain();
    }

    public void removeDecorator(Class<? extends CacheDecorator> decoratorClass) {
        activeDecorators.removeIf(decorator -> decoratorClass.isInstance(decorator));
        rebuildServiceChain();
    }

    private void rebuildServiceChain() {
        CacheService service = getBaseService();

        // 按装饰器的优先级排序
        List<CacheDecorator> sortedDecorators = activeDecorators.stream()
            .sorted(Comparator.comparing(this::getDecoratorPriority))
            .collect(Collectors.toList());

        // 重建装饰器链
        for (CacheDecorator decorator : sortedDecorators) {
            service = decorator.wrap(service);
        }

        this.currentService = service;
    }

    @Override
    public Object get(String key) {
        return currentService.get(key);
    }

    @Override
    public void put(String key, Object value, long expireTime) {
        currentService.put(key, value, expireTime);
    }
}

# 5.2 装饰器与 AOP 的结合

@Aspect
@Component
public class CacheDecoratorAspect {

    @Autowired
    private List<CacheEnhancer> enhancers;

    @Around("@annotation(cacheable)")
    public Object aroundCacheable(ProceedingJoinPoint joinPoint, Cacheable cacheable) throws Throwable {
        String key = generateKey(joinPoint, cacheable);

        // 前置增强
        for (CacheEnhancer enhancer : enhancers) {
            Object result = enhancer.beforeGet(key);
            if (result != null) {
                return result;
            }
        }

        // 执行原方法
        Object result = joinPoint.proceed();

        // 后置增强
        for (CacheEnhancer enhancer : enhancers) {
            result = enhancer.afterGet(key, result);
        }

        return result;
    }
}

# 六、总结与延伸

# 6.1 核心观点提炼

装饰器模式的核心价值在于功能的动态组合和透明扩展，它通过以下方式解决了复杂系统的功能扩展问题：

避免继承爆炸：通过组合而非继承实现功能扩展
保持接口一致性：装饰器与被装饰对象实现相同接口
支持动态组合：运行时可以灵活组合不同功能
符合单一职责：每个装饰器只负责一个特定功能

# 6.2 技术演进趋势

装饰器模式在现代 Java 生态中的演进：

注解驱动装饰器：使用注解简化装饰器的应用
函数式装饰器：利用 Lambda 表达式和高阶函数
响应式装饰器：在 Reactor 和 RxJS 中的应用
云原生装饰器：在 Service Mesh 和 Sidecar 模式中的体现

# 6.3 应用边界

装饰器模式不是万能的，在以下场景中需要谨慎使用：

性能敏感场景：装饰器链的调用开销可能影响性能
强依赖关系：功能之间有复杂的依赖关系时
接口频繁变更：组件接口变化会影响所有装饰器

# 6.4 后续优化方向

性能优化：装饰器合并、调用链优化
监控完善：装饰器执行时间、成功率统计
配置管理：装饰器的动态配置和热更新
错误恢复：装饰器失败时的降级和熔断机制

装饰器模式作为结构型设计模式的代表，在功能扩展和组合方面展现出强大的灵活性。通过合理的设计和实践，它能够显著提升系统的可扩展性和可维护性，是构建复杂中间件系统的重要工具。

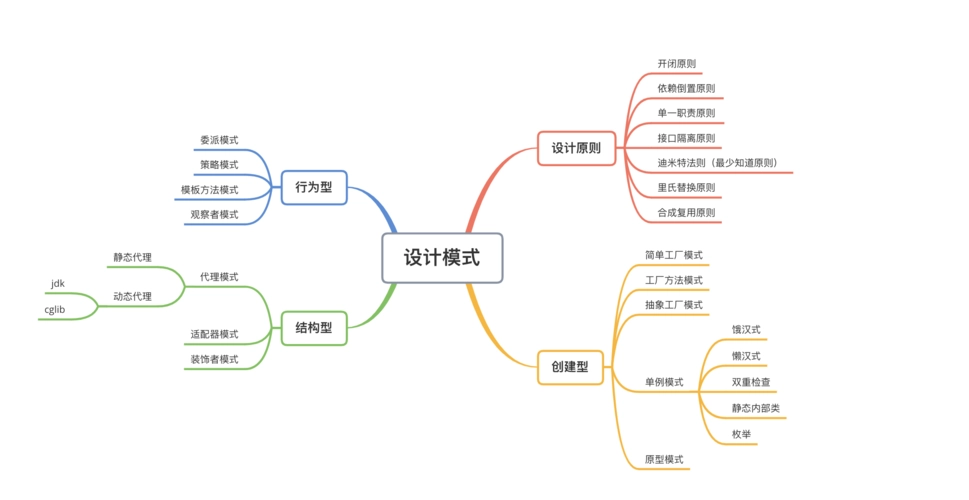

设计模式
